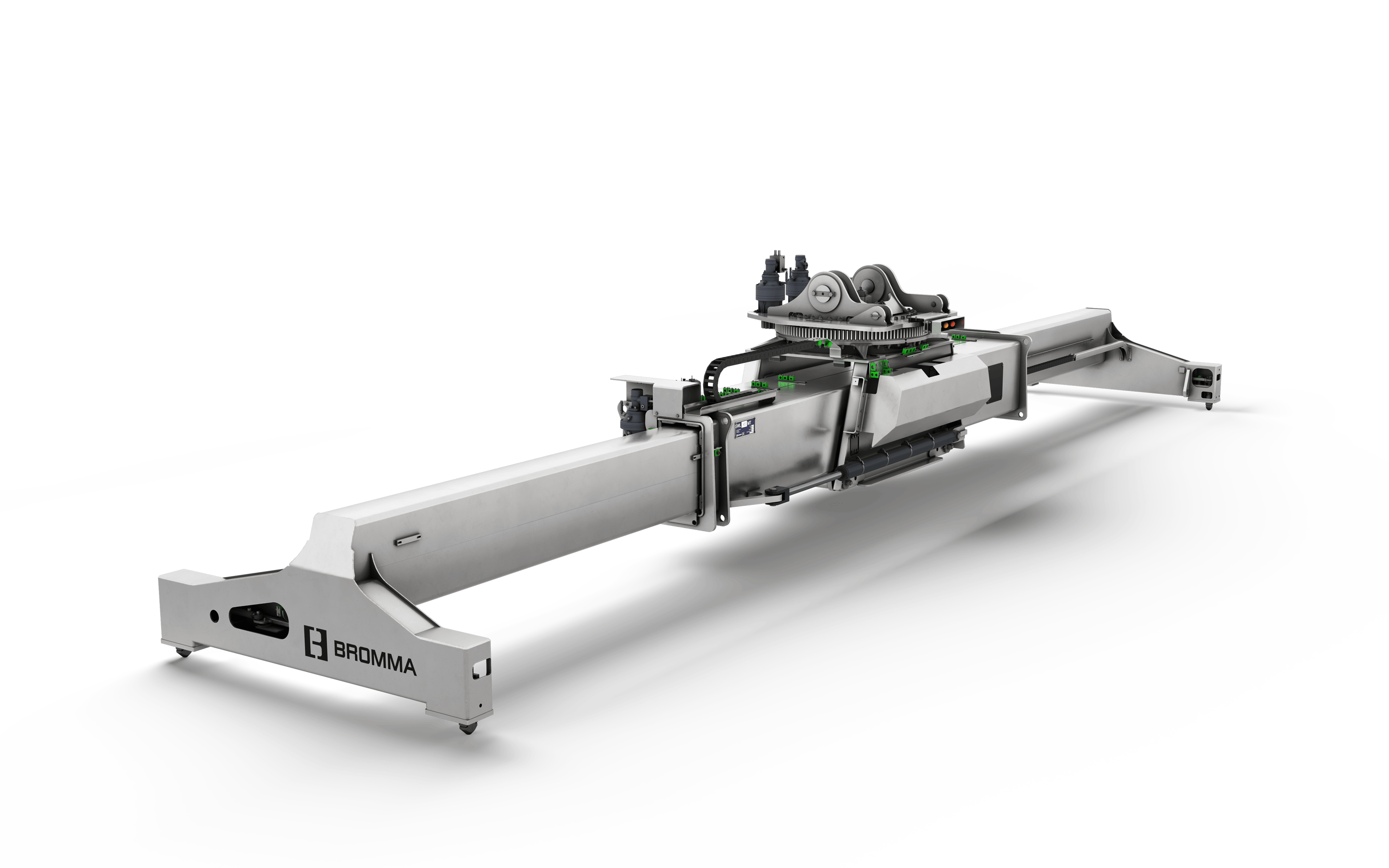

The Bromma RSX40C is a combined reach stacker spreader for single container and trailer handling. It has four grapple arms to lift trailers, swap bodies (C715, C745) and bottom lifting containers.

RSX40C is equipped with grapple arms, side shift, rotating, telescopic, powered pile slope and floating twistlock functions that allows it to easily locate containers. All spreader movements are controlled with 24V proportional valves, providing precise and smooth operation. The spreader is operated from the driver’s cab over serial communication  CANopen) or parallel wiring. Commands are processed by an electronic control unit on the spreader with built in safety logics for container handling.

The spreader is designed in accordance with EN13001. As all Bromma spreaders it is made from European high quality steel, which ensures a light and robust design. The spreader has a user friendly design and all components are easily accessible for inspection and maintenance.

Major Features

  • Low tare weight
  • Smooth control technology
  • 20´to 40´at maximum speed with dampening
  • Floating ISO twistlocks
  • Grapple arms with block stacking
  • 800 mm side shift
  • -195º/+105º rotator
  • ±5 PPS
  • Full CANopen bus integrated management
  • Long service intervals
  • Fast diagnostics


Lifting capacity(SWL)

  • 45 metric tons, up to ±10% eccentric load
  • 10 x 4 metric tons, with lifting lugs on the endbeams

Tare weight

  • 12 500 kg without extra equipment

ISO floating twistlocks

  • 90º in less than 1.5 sec. Mechanical and electrical safety interlock system


  • -195º/+105º in less than 50 sec. with control technology for smooth positioning.

Side shift

  • ±800 mm in less than 15 sec.

Grapple arms

  • 2 pairs with block stacking up or down in less than 20 sec.


  • 20’ to 40’ in less than 15 sec. Analogue or digital sensors for damping and telescoping.

Mechanical pile slope

  • ±5°
