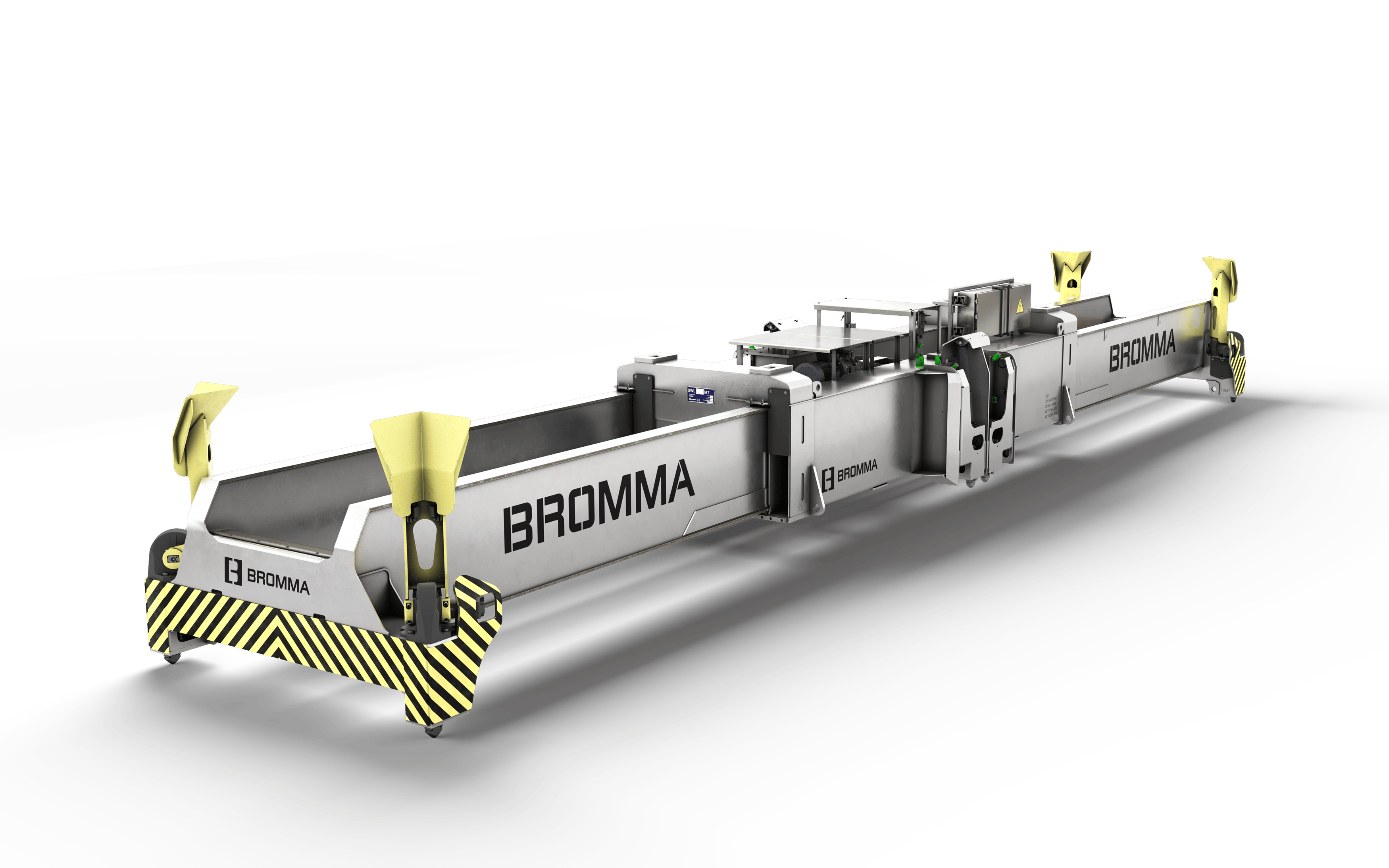

Bromma STR40/45 spreader

STR40/STR45

STR40/STR45 are hydraulic telescoping twin-lift STS spreaders. They can lift a wide combination of containers and thereby provide significant improvements in productivity.

Category: Tags: , ,

Description

Possible container combinations: 20´, 30´, 40´, (45´), 2×20´

STR40/STR45 are good alternatives for the smaller and less busy terminals but also good backup spreaders if the usual spreader is taken out of operation. The spreader is designed in accordance with EN13001. As all Bromma spreaders it is made from European high quality steel, which ensures a light and robust design. The spreader has a user friendly design and all components are easily accessible for inspection and maintenance.

Major Features

  • Recessed end beams allow handling of lashing frames and hatch covers
  • Fast trouble shooting due to the design

Specifications

Lifting capacity (SWL)

  • One container 51 metric tons evenly loaded
  • One container 51 metric tons ± 10% eccentric load
  • Twin-lift of two 20’ containers 2 x 32.5 metric tons evenly loaded
  • Lifting lugs 4 x 10 metric tons in the main frame and end beams

Separating capacity

  • 0-1600 mm with full load

Tare weight

  • STR45: Approx. 11 metric tons (without extra equipment)
  • STR40: Approx. 9.9 metric tons (without extra equipment)

Telescopic motion

  • STR45: From 20’ to 45’ in approx. 30 sec.
  • STR40: From 20’ to 40’ in approx. 28 sec.

Design criteria

  • EN13001; DIN 15018 H2B4; FEM 1.001; British standard BS 2573
