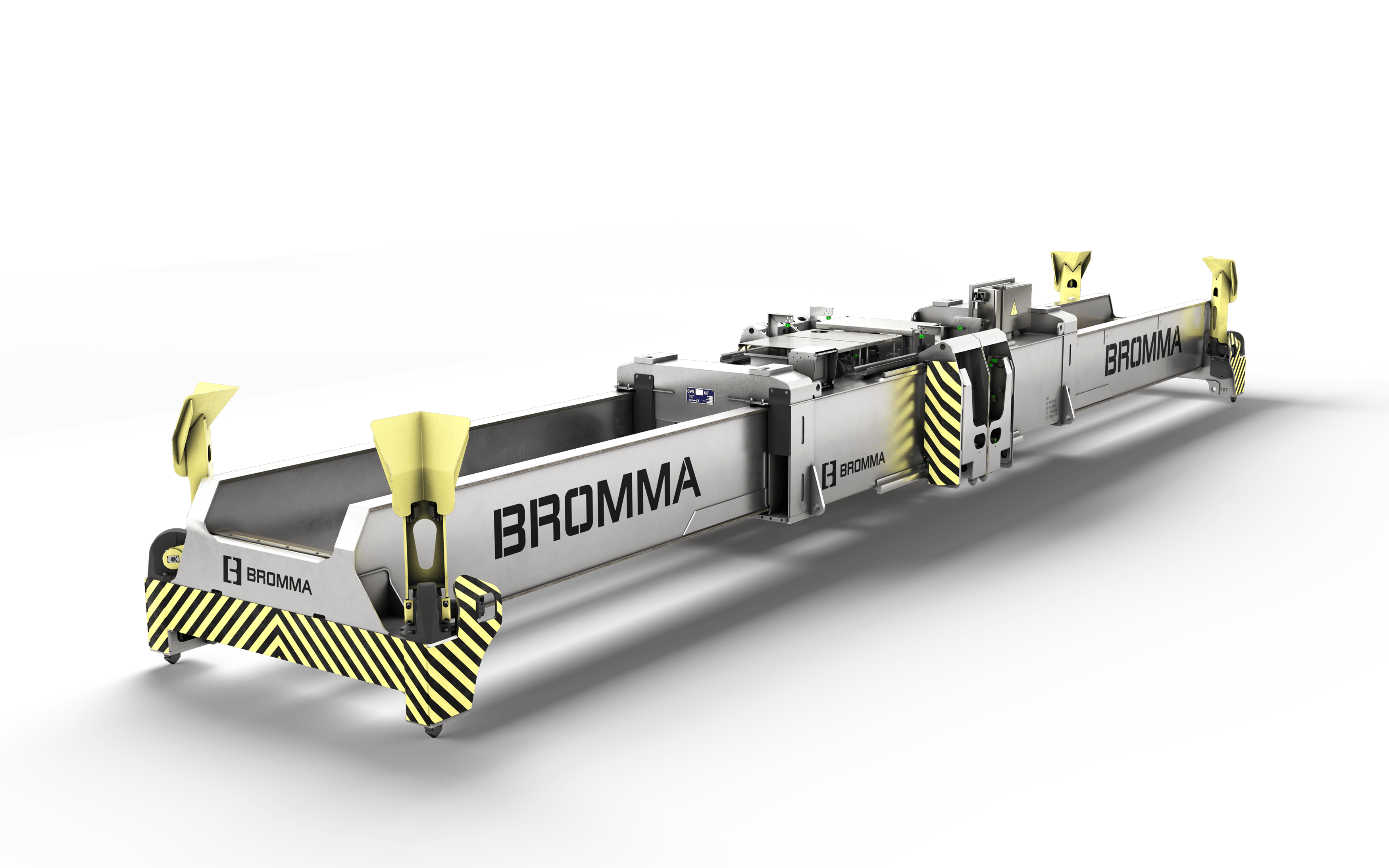

STS45

T

Click to
zoom in

Description

The STS45 handles 20’, 40’, 45’, and twin 20’ containers with exceptional stability and speed. Its separating twin-lift capability enables simultaneous handling of two containers, boosting crane productivity and vessel turnaround time.

Built from high-strength European steel and designed in accordance with EN13001, the STS45 offers a light yet robust structure, proven in high-throughput environments worldwide.

A user-friendly design ensures all components are easily accessible for inspection and maintenance, providing consistent uptime and dependable performance day after day.

Download STS spreaders brochure

Major Features

  • A highly reliable spreader with long fatigue life even under extreme load conditions
  • Recessed end beams enable handling of lashing frames and hatch covers
  • Fulfils the design criteria of EN13001: HC2, HD1, U7, Q3; DIN 15018 H2B4; FEM 1.001 and British standard BS 2573

Specifications

Lifting capacity (SWL)

  • One container 51 metric tons evenly loaded
  • One container 51 metric tons ± 10% eccentric load
  • Twin-lift of two 20’ containers 2 x 32.5 metric tons evenly loaded
  • Lifting lugs 4 x 10 metric tons in the main frame and end beams

Telescopic motion

  • STR45E: From 20’ to 45’ in approx. 30 sec.
  • STR40E: From 20’ to 40’ in approx. 28 sec.

Lifting capacity (SWL)

  • One container 51 metric tons evenly loaded
  • One container 51 metric tons ± 10% eccentric load
  • Twin-lift of two 20’ containers 2 x 32.5 metric tons evenly loaded
  • Lifting lugs 4 x 10 metric tons in the main frame and end beams

Separating capacity

  • 0-1600 mm with full load

Tare weight

  • Approx. 12.7 metric tons (without extra equipment)

Telescopic motion

  • From 20’ to 45’ in approx. 30 sec.

Design criteria

  • EN13001; DIN 15018 H2B4; FEM 1.001; British standard BS 2573
