CAN Filter Kit

Click to
zoom in

Description

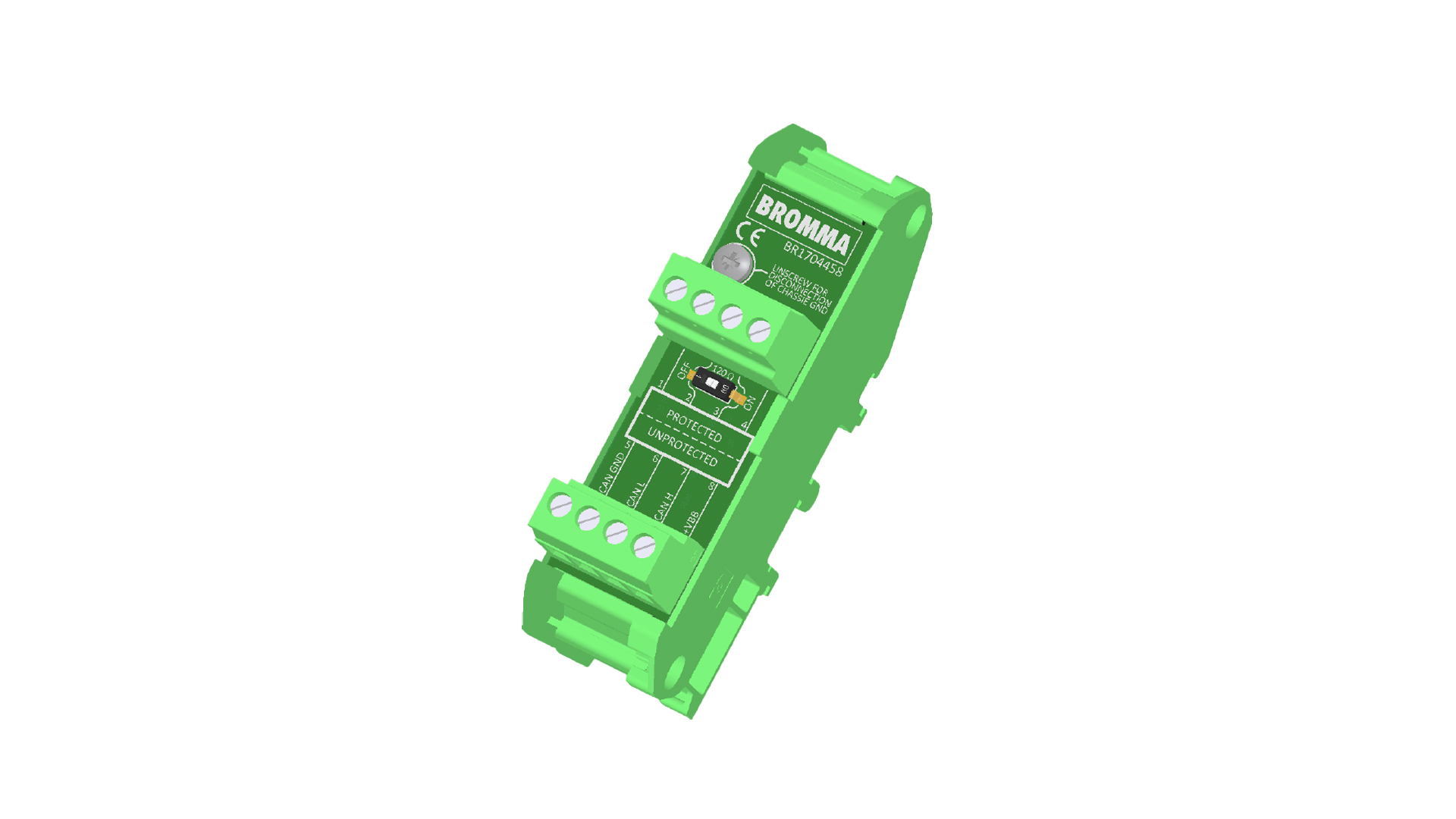

The CAN Filter Kit BR1704458 has been designed to be mounted on a standard DIN-rail to protect the CAN bus against transient voltage spikes. It replaces the Polyswitch BR1027832 and in some cases, the Phoenix Transient Protection BR1020915/BR1020916. The CAN Filter Kit is available both as an option for new spreaders, or as an upgrade on spreaders already in operation. The CAN Filter Kit is available both as an option for new spreaders, or as an upgrade on spreaders already in operation.

Benefits of having the CAN Filter Kit design upgrade

  • DIN-mounted transient protection for CAN bus data lines.
  • Reduces transmission errors on CAN bus and noise interference.
  • Reduces communication issues.

Specifications

Scope of work

The scope of work for the supply and installation of the CAN Filter Kit design upgrade includes:

  • Remove old part
  • Install the new CAN Filter Kit
  • Wiring for the new CAN Filter Kit
  • Test all functions
  • Revise existing drawings
  • Revise spreader manuals

Parts included

The following parts are included in the CAN Filter Kit upgrade offer:

  • CAN Filter Kit
  • Wire ring
  • Ferrule
  • Cable connector

Additional items included in scope of work

The following additional items are included in the CAN Filter Kit upgrade:

  • CAN Filter Kit installation and maintenance training

Material & installation lead time

  • Material leadtime: 5 days (Exw Bromma Malaysia)
  • Installation leadtime: 3 hours (per spreader, inclusive of testing)
