LED Indicator Lamp Upgrade

Click to
zoom in

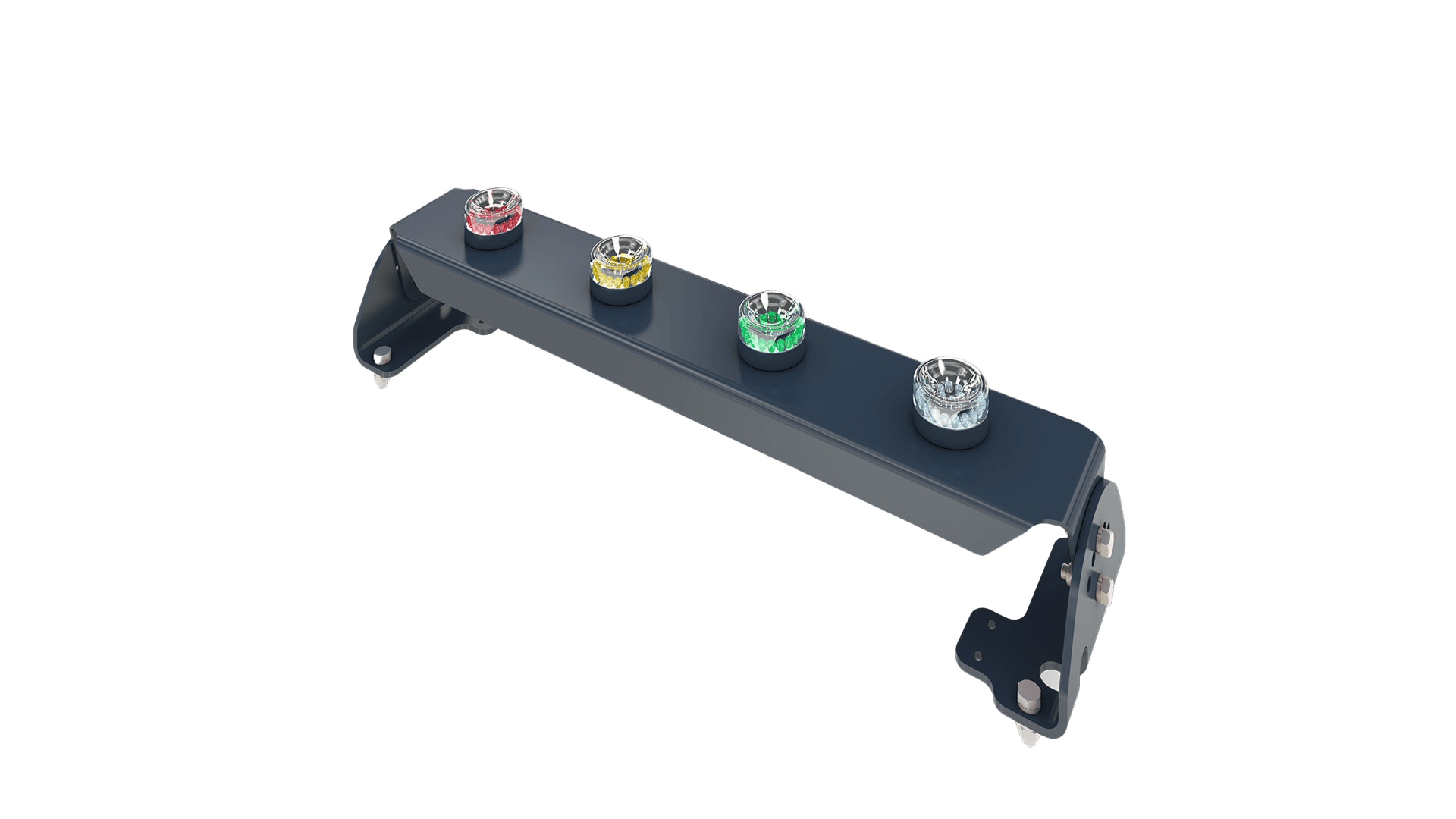

Bromma spreaders can be equipped with high quality LED indicator lamps as an option. These lamps are available in five standard colours, i.e. red, yellow, green, blue and white, in 24 V DC and 100-250 V AC versions. The high intensity lamps are made from high impact strength polycarbonate.

LED Indicator lamps can easily be mounted on all existing spreaders and each lamp can be ordered separately. This upgrade is available both as an option for new spreaders, or as an upgrade on existing spreaders.

Benefits of the upgrade

  • The high quality LED indicator lamps may be arranged according to colour preference on the mounting bracket
  • Steel coated mounting brackets allow lamp adjustment in five different tilted angles from -50º to 50º to increase visibility
  • The LED indicator lamp design extends the lifetime of the lamp system considerably and increases visibility in daylight
  • The vibration and shock resistant lamps can be mounted directly on the structure without dampers
  • Cost effective as replacement is only needed for defective lamps without affecting the whole lamp system
  • The LED indicator lamps may also be supplied as loose items to be installed on the head block


Scope of work

    The scope of work for the supply and installation of the LED Indicator Lamps design upgrade includes:

  • Dismantle old LED lamp with cabling (for old LED-type lamp)
  • Install new LED lamp with cabling (for old LED-type lamp)
  • Dismantle LED lamp set with cabling (for old bulb-type lamp)
  • Weld new LED lamp mounting (for old bulb-type lamp)
  • Install new LED lamp with cabling (for old bulb-type lamp)
  • Test all functions
  • Revise existing drawings
  • Revise spreader manuals/li>

Parts included

The following parts are included in the LED Indicator Lamps upgrade offer:

  • LED indicator lamps and mountings
  • Cables and item markings

Additional items included in work scope

The following additional items are included in the LED Indicator Lamps upgrade:

  • Installation and maintenance training

Material & installation leadtime

  • Material leadtime: 5 weeks (Exw Bromma Malaysia)
  • Installation leadtime: 1-2 days (per spreader, inclusive of testing)

Price & delivery

  • Please connect with your local Bromma representative for price and delivery leadtime.
